PRISMA TWIST

Self tilting spiral mixer from 130 to 300 kg of dough.

Mixers / Spiral mixers

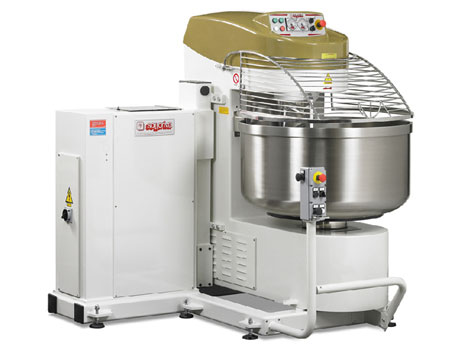

Machine made up of a TWIST model spiral mixer and PRISMA tilting hydraulic device.

The two-speed spiral mixer has two timers with automatic working cycle and bowl reversal.

Upon request the dough can be poured either on a table or on the hopper of the volumetric divider, either to the right or to the left side.

Technical Specifications
TYPE MIXER POWER LIFTER POWER DOUGH kg MASS kg SIZE mm
PRISMA 130/B KW 2.06 - 4.7 - 0.66 KW 0,75 130 1030 1900x1850x2100
PRISMA 160/B KW 3.7 - 5.9 - 0.75 KW 0,75 160 1200 1900x1850x2100
PRISMA 200/B KW 3.7 - 5.9 - 0.75 KW 0,75 200 1290 1900x1850x2100
PRISMA 250/B KW 3.7 - 7.75 - 0.75 KW 0,75 250 1405 1900x1850x2100
PRISMA 300/B KW 3.7 - 7.75 - 0.75 KW 0,75 300 1420 1900x1850x2100
PRISMA 130 KW 2.06 - 4.7 - 0.66 KW 0,75 130 1175 1900x1850x2100
PRISMA 160 KW 3.7 - 5.9 - 0.75 KW 0,75 160 1430 1900x1850x2100
PRISMA 200 KW 3.7 - 5.9 - 0.75 KW 0,75 200 1520 1900x1850x2100
PRISMA 250 KW 3.7 - 7.75 - 0.75 KW 0,75 250 1653 1900x1850x2100
PRISMA 300 KW 3.7 - 7.75 - 0.75 KW 0,75 300 1640 1900x1850x2100
