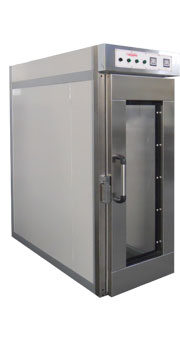

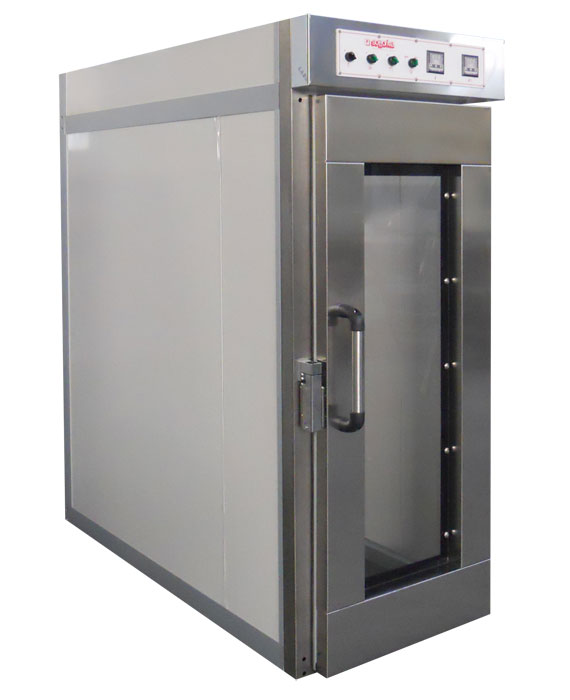

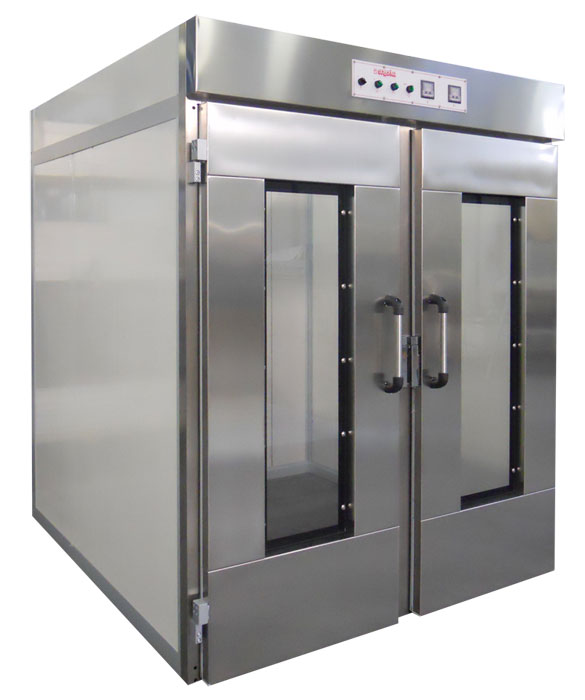

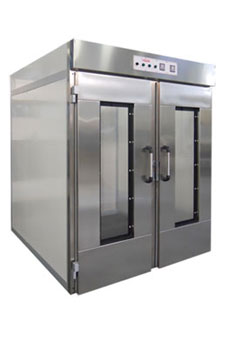

Electric generated prover with indipendent working from the oven. It consists of polyurethan foam panels of high insulation, lined of varnished embossed aluminium plate and structure in anodized aluminium elements with fixed joint assembly.
Finished with heating plant equipped with safety resistances, automatic thermoregulator, air recirculating with adjustable flow, solenoid valve to check water level, precision hygrometer to check humidity, massproduction inside light.
Steams ducts, electric fan and base in stainless steel AISI 304.
N.B.: as the prover is completely self-contained it can be placed everywhere.
| TYPE OF OVEN | STANDARD TRAY SIZE | PROVER DOORS NR. | PROVER DOORS NR. | POWER kW - heat | POWER kW - steam | SIZE mm |
| CLQ 4060/12 CLQ 4060/24 |
40x60cm - 45x55cm - 50x50cm | 1 2 |
2 4 |
2 3 |
2 2 |
800x1650x2000 1500x1650x2000 |
| CLQ 4676/12 CLQ 4676/24 |
46x76cm - 50x60cm 50x70cm - 60x65cm |
1 2 |
2 4 |
3 3 |
2 2 |
900x1950x2150 1700x1950x2150 |
| CLQ 6080/12 CLQ 6080/24 |
60x80cm - 58x78cm 50x80cm |
1 2 |
2 4 |
3 3 |
2 3 |
1000x2050x2300 1900x2050x2300 |
| CLQ 80100/12 CLQ 80100/24 |
80x90cm - 80x100cm - 65x110cm 2x46x76cm - 2x50x70cm |
1 2 |
2 4 |
3 3 |
3 3 |
1150x2450x2300 2200x2450x2300 |
| CLQ 80120/12 CLQ 80120/24 |
80x120cm - 2x60x80cm 2x58x78cm |
1 2 |
2 4 |
3 3 |
3 3 |
1150x2850x2300 2200x2850x2300 |
