EVO

Spiral mixer with removable bowl from 130 to 300 kg of dough.

Mixers / Spiral mixers

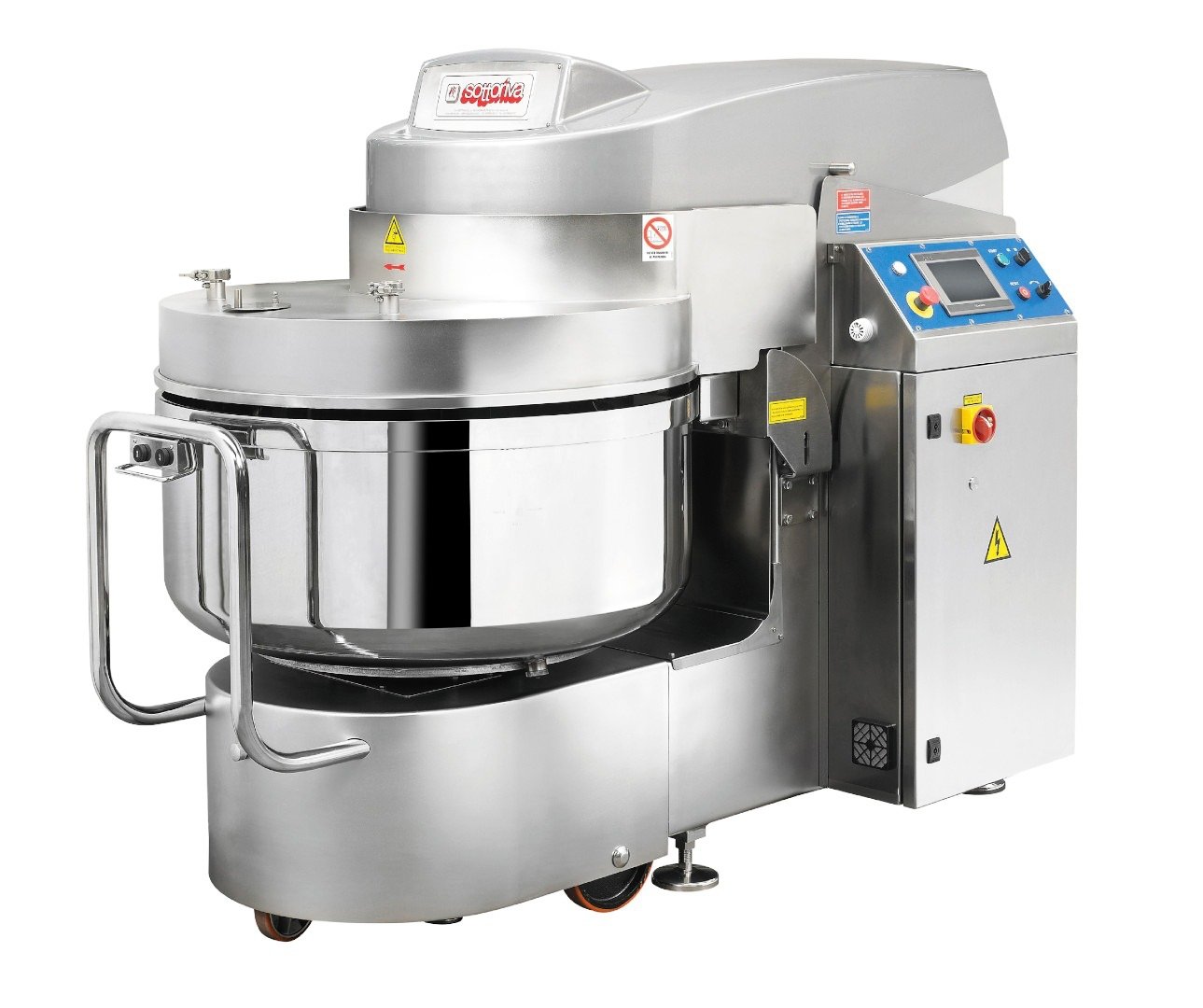

Spiral mixer with removable bowl Mod. EVO has a heavy duty painted steel structure, hydraulic lifting device with machine head lifting pistons and trolley release.

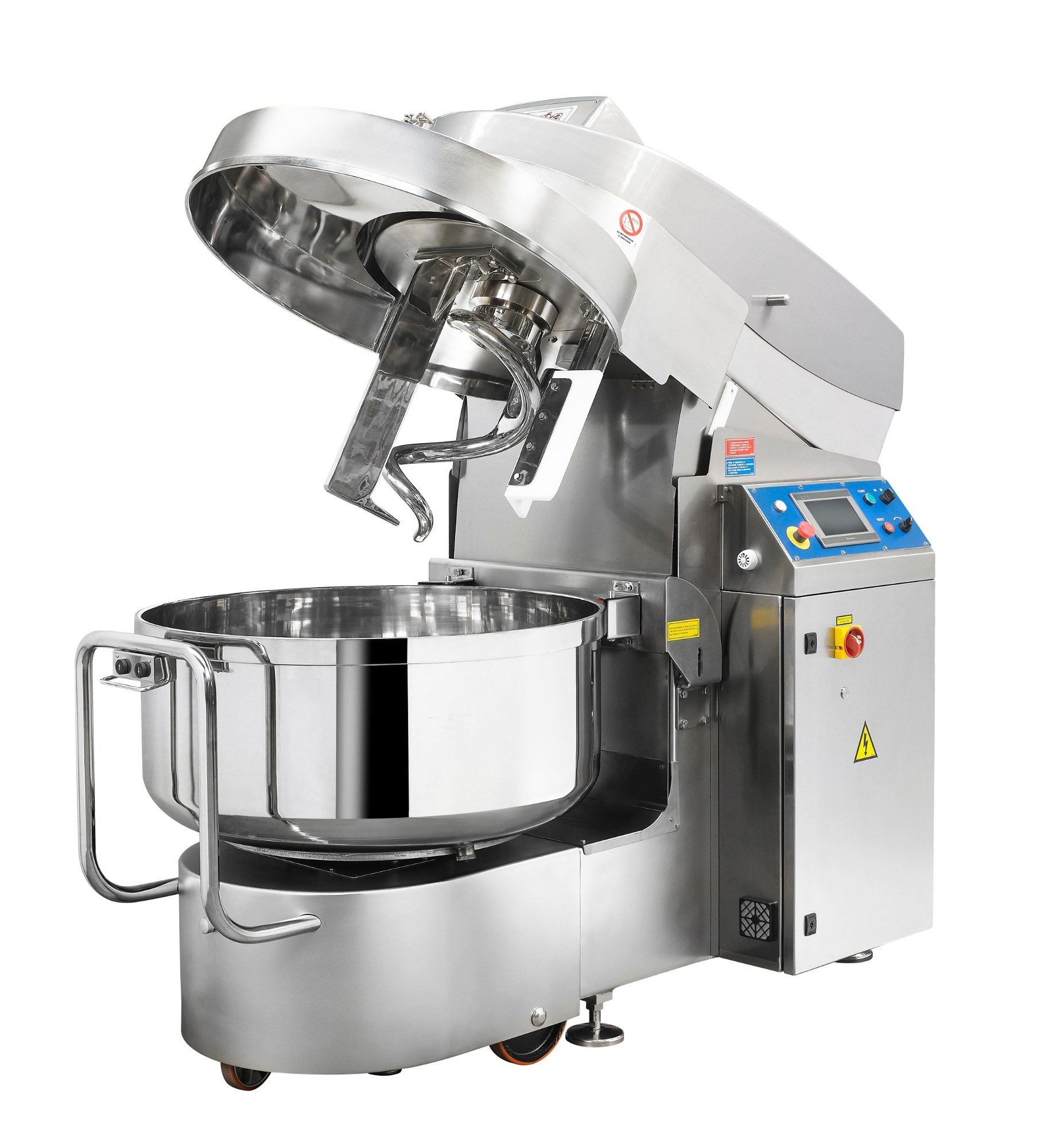

The machine head is equipped with a special hydraulic lifting device which, during the mixing phase, permits to avoid the stress transmitted by the mixing tool.

This spiral mixer offer spiral rotation through belts driven by a powerful motor, motion transmission of the bowl by an independent motor, high performance belts and worm screw gear in oil bath.

Evo is equipped with two speeds rotation spiral with mixing time to set by double timer (one for each speed).

The change from low to high mixing speed and the stopping of the machine occurs automatically. There is an automatic trolley hooking with new self-centering system.

The machine offers lifting/lowering controls on trolley with new patented system.

Technical Specifications
TYPE MOTOR DOUGH kg MASS kg SIZE mm
EVO 130 KW 3/5,15-1,1-1,85 130 1150 2000x1140x1600
EVO 160 KW 4,5/7,8-1,1-1,85 160 1300 2200x1140x1850
EVO 200 KW 4,5/7,8-1,1-1,85 200 1330 2200x1140x1850
EVO 250 KW 5,9/10,3-1,1-1,85 250 1380 2200x1140x1950
EVO 300 KW 5,9/10,3-1,1-1,85 300 1400 2200x1140x1950
