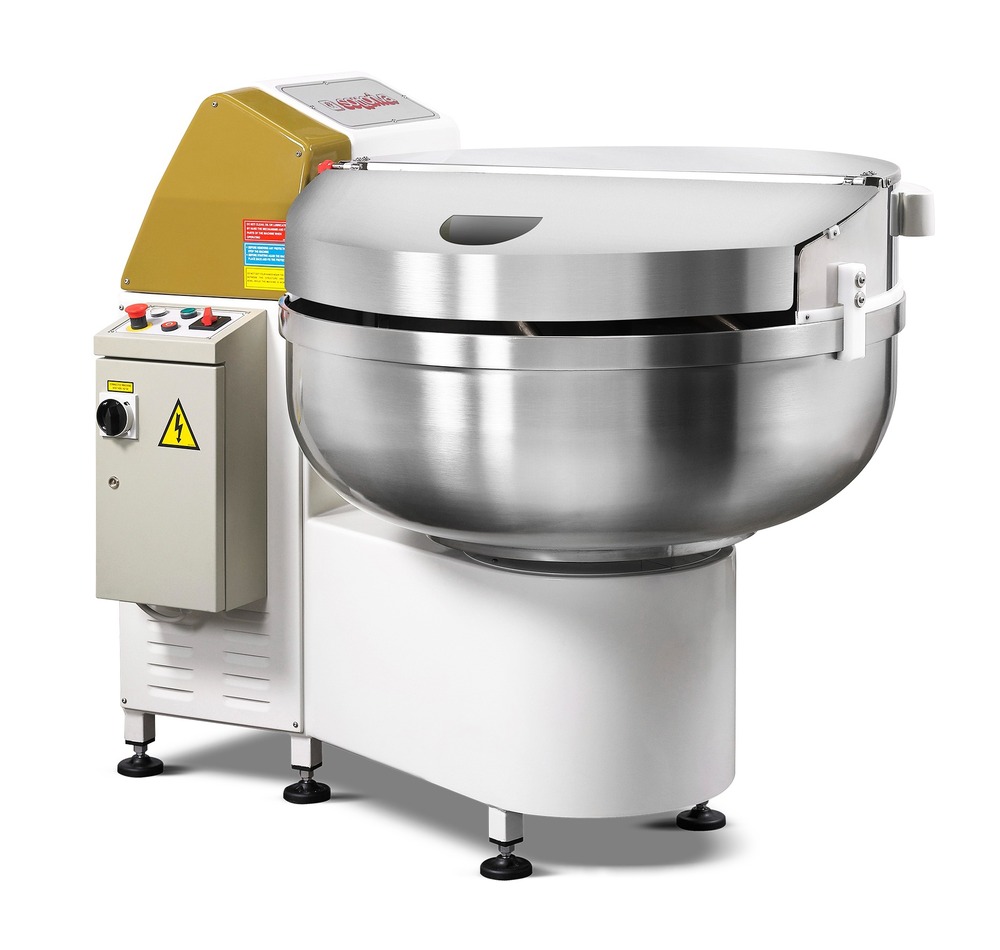

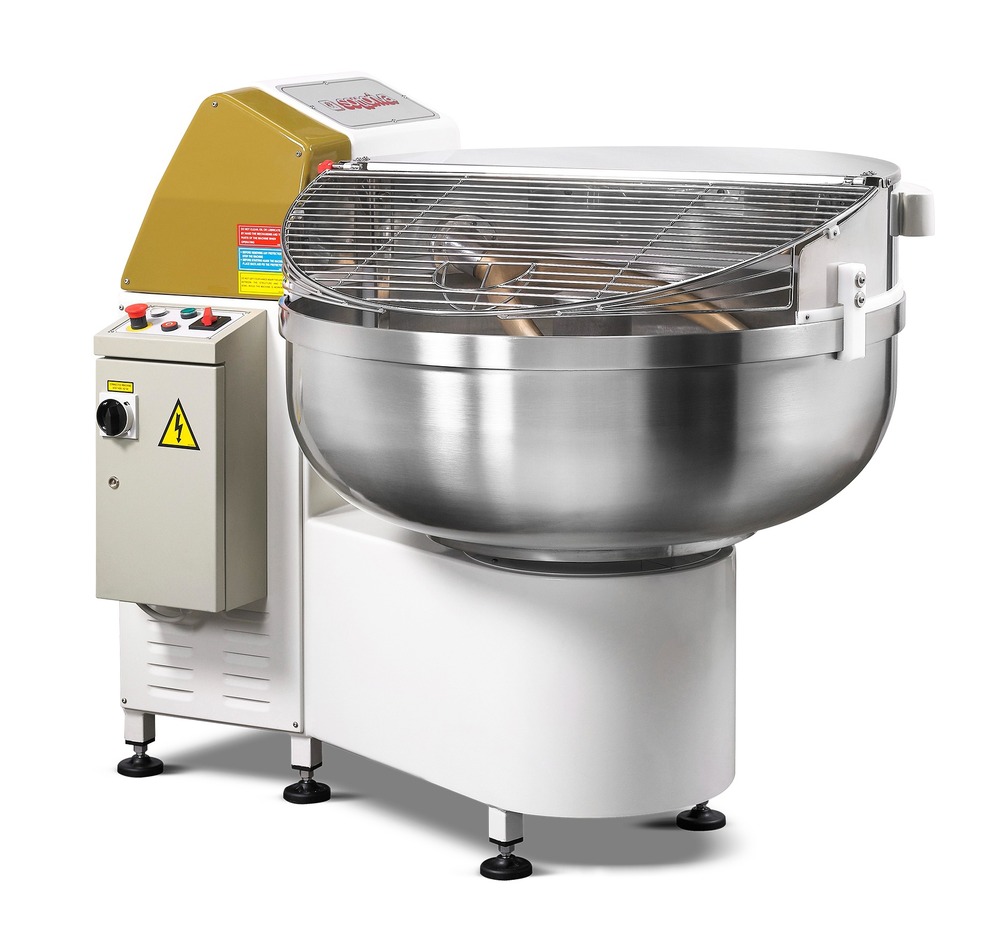

ARCA

Fork mixer with motorised bowl suitable for hard and semi-hard dough.

Mixers / Fork mixers

The Fork Mixer Mod. ARCA is the evolution of the traditional machines suitable for hard and semi-hard dough. The technical features reflect the traditional work rules, both as concerns the heat supply to the dough and the work speed.

STRUCTURE:

  • Heavy duty painted steel structure.
  • Single-block, painted cast iron fusion head.
  • Machine structure to guarantee stability and solidity during the working.
  • Safety mobile guard made by AISI 304 stainless steel.
  • Head covered by ABS plastic suitable for food contact and anti UV. TECHNICAL FEATURES • Movements of the tool in oil bath with worm screw gear.
  • Mixing tool made by a special high resistance alloy.
  • Motorized AISI 304 stainless steel bowl with chain transmissions.
  • Two speeds bowl rotation. First reduction through worm screw and oil bath gear, second reduction trough chain.
  • The same motor of the mixing tool generates the movement of the bowl in order to save energy.
  • Selector for the first or second speed.

Technical Specifications
TYPE 2 SPEED MOTOR DOUGH kg MASS kg SIZE mm
ARCA 140 KW 2,06-3,68 140 452 1373x982x1093
ARCA 200 KW 2,58-4,78 200 490 1437x1044x1143
ARCA 250 KW 2,58-4,78 250 500 1470x1084x1143
